Valvula kontrolli sigurie SERIA CV
Valvulat e kontrollit te serise CV sigurojne rrjedhje te lire ne nje drejtim dhe mbyllje ne drejtimin tjeter. Ato gjithashtu mund te perdoren si by-pass per pikat e valvules, per drejtimin e rrjedhjes ne nje drejtim, per shkarkim valvule dhe per te mbajtur valvulen.
| Material Thread Size Opening Pressure Sealing Working Temperature Plating Upon Request Applications |
Carbon Steel BSP (Upon Request: NPT, Metric) 0,5 Bar (6-8 Bar opening pressure is optional, open request) Nitrile O-ring (NBR) -30 °C and +110 °C Zinc Plating (Cr III Passivation) VITON & High temperature resistant special spring (-30 °C & +225 °C)Special spring for optional 6-8 Bar opening pressure Construction, production, agriculture, mobile hydraulic, general industries |

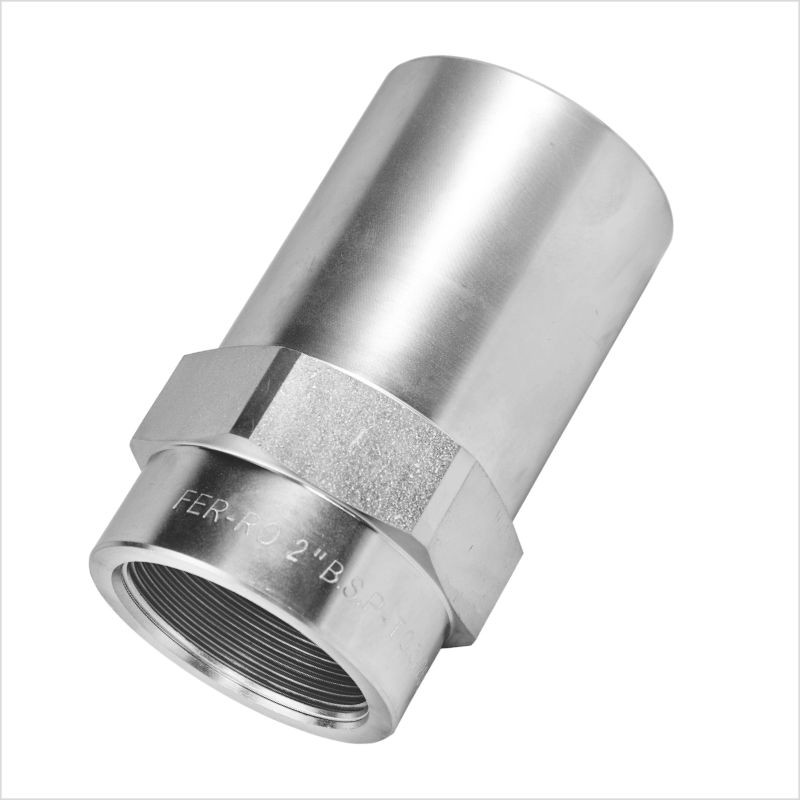

CV Series Hydraulic Check Valves provide free flow in one direction while the opposite direction is shut-off.
They are also used for by-pass of throttle points, for flow prevention in one direction, for discharging valve and for hold valve.
Opening pressure of CV Series Hydraulic Check Valves is 0,5 Bar. Upon request, 6-8 Bar opening pressure is optional.
| Material Thread Size Opening Pressure Sealing Working Temperature Plating Upon Request Applications |
Carbon Steel BSP (Upon Request: NPT, Metric) 0,5 Bar (6-8 Bar opening pressure is optional, open request) Nitrile O-ring (NBR) -30 °C and +110 °C Zinc Plating (Cr III Passivation) VITON & High temperature resistant special spring (-30 °C & +225 °C)Special spring for optional 6-8 Bar opening pressure Construction, production, agriculture, mobile hydraulic, general industries |
